Краткое описание

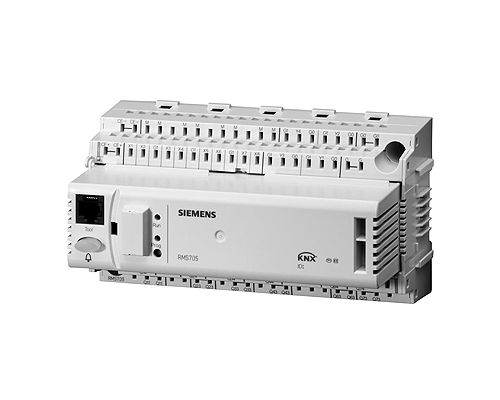

The RMS705B-1 complements the range of Synco700 products as a freely configurable unit for

• control and supervisory functions in heating, ventilation and refrigeration plant
• non-standard applications

and, for this reason, offers no predefined standard applications.

The RMS705B-1 is especially suited for the following functions:

• Connection of additional universal alarm inputs
• Adding free inputs for display and supervision
• Event logging (e.g. legionella function)
• Additional time programs (ON / OFF) for basic functions
• Calculation of enthalpy, enthalpy differential, absolute humidity, dewpoint and wet bulb temperature
• Logic function blocks for switching on / off depending on different conditions
• Lead / lag control of pumps, fans, motors, etc., with automatic changeover
• Step switch with linear, binary or flexible functionality

The RMS705B-1 supports the languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Danish, Finnish, Norwegian, Swedish, Polish, Czech, Hungarian, Russian, Slovak, Bulgarian, Greek, Romanian, Slovenian, Serbian, Croatian, Turkish, Chinese.

Extension modules complement the switching and monitoring device and offer extra functions. They are attached to the controller via plug-in connectors. The extension modules do not operate autonomously. The operation of the device from commissioning to enduser operation can be done via the operator unit. Available extension modules:

• 1 universal module RMZ785
• 2 universal modules RMZ787
• 2 universal modules RMZ788

A total of 4 extension modules can simultaneously be used with the switching and monitoring device.

Available operator units:

• Plug-in operator unit RMZ790
• Detached operator unit RMZ791
• Bus operating unit RMZ792

Рабочее напряжение	AC 24 В
Частота	50/60 Гц
Потребляемая мощность	12 ВА
Коммуникация	KNX (KNX TP1)
Колич. аналоговых выходов	4
Аналоговый выход, сигнальный	DC 0...10 V
Аналоговый выход, ток	Max. 1 мA
Универсальный вход, сигнальный	T1 (PTC) , Pt1000 , Сухой контакт , LG-Ni1000 , Импульсный контакт , DC 0...10 V, 2 x LG-Ni1000 , 0...1000 Ohm
Колич. универсальных входов	8
Колич. дискретных выходов	6
Дискретный выход, ток коммутируемой цепи	AC 19...250 В
Дискретный выход, ток коммутируемой цепи	4 (3) A
Класс защиты	IP20
Размеры (Ш х В х Г)	173 × 90 × 80 мм

Логистическая информация

Длина упаковки, см	10,1
Ширина упаковки, см	18,2
Высота упаковки, см	10,1
Вес, кг	0,554

Сертификат и гарантия:

Гарантийный срок со стороны производителя составляет: 1 год
