Краткое описание

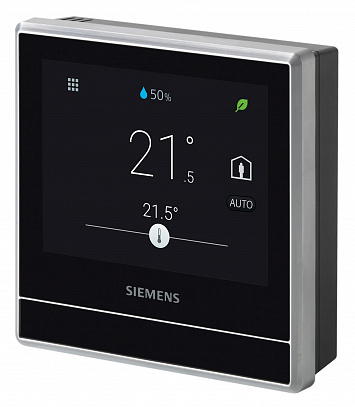

Wireless room thermostat for the control of heating applications in apartments, single family homes, dormitories
and other residential-type as well as light commercial spaces. With remote access via computer, tablet,
or smartphone using the Siemens Comfort Cloud service.

Room thermostat features

• Backlit, auto-dimming 90 mm color LCD touch screen for intuitive local operation
• Air quality indication via built-in sensor
• Presence detection via geo-fencing
• Direct temperature and operating mode selection
• Temperature setting limitation for use in public spaces
• Screen lock protection against unauthorized access
• Room temperature control using the built-in temperature sensor or an optional remote sensor
• Optional temperature averaging using an additional remote temperature sensor
• Patented self-learning algorithm with PID response (patent pending) guaranteeing optimum temperature control performance in all room types
• Optimum start control function that advances the switch-on time to ensure the selected setpoint is reached as required
• Viewing temperature, humidity and heat demand trends
• Floor temperature limitation using a remote sensor in electric floor-heating applications
• Humidity control using the built-in humidity sensor or an optional remote sensor
• Multifunctional inputs for remote sensors
• Navigation wizard for guided, fast commissioning
• Remote firmware upgrade capability

Remote operation and monitoring

• Mobile App for smartphones and tablets based on iOS and Android
• Individual time program for each day of the week
• Energy consumption indication
• Manual switchover between “Home”, “Away” and “OFF” operating modes on mobile app
• Wireless communication with receiver and radiator valve
• Support Dark and Light background colors on mobile app

Рабочее напряжение	AC 230 V
Потребляемая мощность	Max. 9 ВА
Диапазон задания уставки	0…50 °C
Дифференциал переключения	0.5…6 K
Коммуникация	Connectable with a WLAN (802.11b/g/n) compatible router
Колич. аналоговых входов	2
Релейные выходы	Potential-free
Колич. дискретных выходов	2
Дискретный выход, ток коммутируемой цепи	AC 24…230 V
Дискретный выход, ток коммутируемой цепи	5 (2) A
Способ монтажа	Wall mounting with screws
Класс защиты	IP30
Размеры (Ш х В х Г)	91 x 91 x 26 мм

Логистическая информация

Длина упаковки, см	15
Ширина упаковки, см	15
Высота упаковки, см	5,55
Вес, кг	0,219

Сертификат и гарантия:

Гарантийный срок со стороны производителя составляет: 1 год
